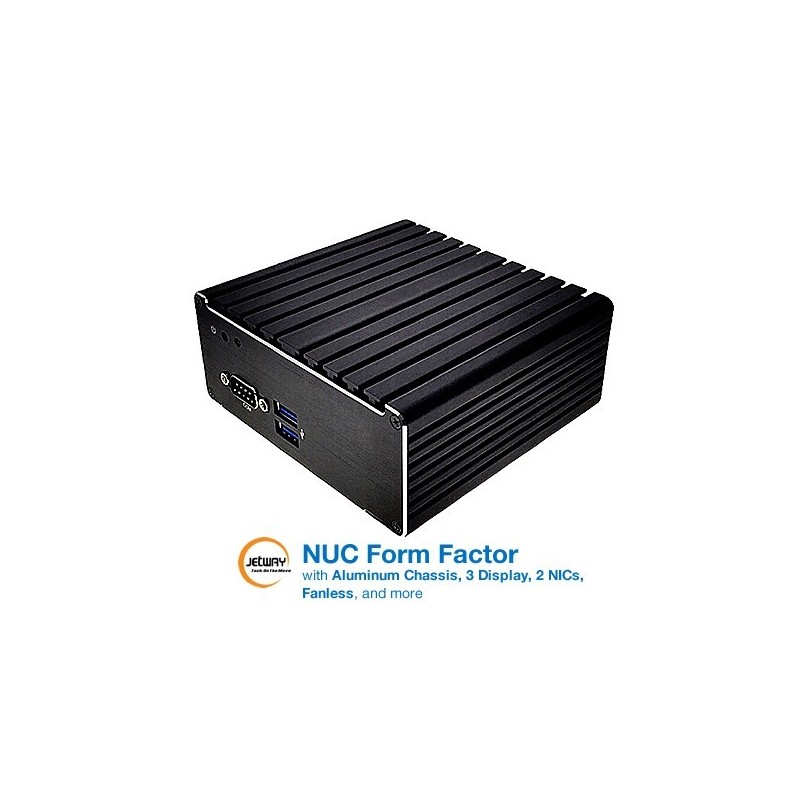

Mini PC fanless JBC313U591-3150B
BBJEJBC313U591-3150
Barebone Fanless, INTEL BAY Braswell N3150, 1xCom, 2xIntel i211 Lan,
4xUSB3.0, 1xUSB3.0, 2xHMDI, 1xDP, m-Sata,
1*mPCIe Half Size, 1xDDR3L Max 8GB, Audio,
Dim : 116x110x49 mm, 12V, Wall mount, DIN, VESA mount
4xUSB3.0, 1xUSB3.0, 2xHMDI, 1xDP, m-Sata,
1*mPCIe Half Size, 1xDDR3L Max 8GB, Audio,
Dim : 116x110x49 mm, 12V, Wall mount, DIN, VESA mount
Ce mini PC sans ventilateur, compact et avec une durée de vie planifiée jusque fin 2020, est destiné aux applications POS, POI, client léger, affichage dynamique...
- INTEL® Braswell N3150/N3160 SoC Processor
- Embedded Long-life Series, Planned Lifecycle Through Q4'2020
- Supports 2 x HDMI and 1 x DP for 3 Independent Display
- 12V DC-In & 2 x LAN
- ECO-design for EuP/ErP
- INTEL® Braswell N3150/N3160 SoC Processor
- Embedded Long-life Series, Planned Lifecycle Through Q4'2020
- Supports 2 x HDMI and 1 x DP for 3 Independent Display
- 12V DC-In & 2 x LAN
- ECO-design for EuP/ErP
| Motherboard Specification | ||
| CPU | Fanless Intel® Celeron N3150 SoC, 1.60GHz – 2.08GHz Burst, Quad-Core, 6W TDP/4W SDP, with AES-NI support Fanless Intel® Celeron N3160 SoC, 1.60GHz – 2.24GHz Burst, Quad-Core, 6W TDP, with AES-NI support | |
| Memory | 1 x 204-pin SODIMM DDR3L-1600 Dual Channel 1.35V required (up to 8 GB) * 1600MHz memory will run at 1600MHz * 1333MHz memory will run at 1066MHz * 1066MHz memory not supported | |
| Graphics | Intel® HD Graphics (N3150), Intel® HD Graphics 400 (N3160) | |
| LAN | 2 x Intel I211-AT PCI-E Gigabit LAN | |
| Audio | Realtek ALC662VD HD Audio & Intel® Display Audio | |
| Storage | 1 x Full Size mSATA Slot | |
| Wireless / Mini-PCIE Slot | 1 x Half size Mini-PCI Express Slot | Wireless 802.11 b/g/n + Bluetooth 4.0 |
| Chassis Specification | ||
| Product size | 116 * 110 * 49 mm | |
| Material | Lightweight aluminum alloy with extruded aluminum IO panel | |
| Color | Black and Sliver | |
| Storage Bay | NA | |
| Front I/O Port | 1 * Power Button 1 * Power LED 1 * RS232/422/485 COM port 2 * USB 3.0 | |
| Rear I/O Port | 1 * +12V 2.5mm Diameter DC-In Power Jack 1 * Line out / MIC in Combo Jack 1 * Display Port 1.1 (upto 2560 x 1600 @ 60Hz or 3840 x 2160 @ 30Hz) 2 * HDMI 1.4b (1920 x 1080 @ 60Hz) 2 * USB 3.0 port 2 * RJ-45 port 2 * SMA Connector for WiFi Antenna 1 * Kensington Lock Hole | |
| Power | Adapter : AC_90~240V / DC_12V/40W | |
| Environment | Operating Temperature : 0°C ~ 40°C with air flow Storage Temperature : -20°C ~ 80°C | |
| Standard Accessory | √ 40W AC Adapter x1 √ Power Cord x1 √ Screw pack x1 √ DVD Disk x1 √ Manual x1 √ Wall / VESA / Din Rail Mount Bracket √ Din Rail Clip √ WIFI antenna (on WIFI model) | |
| Functional | Digital Signage, Set Top Box, Thin Client, Car Entertainment, Smart Mini PC, POS/POI, KIOSK, HTPC | |
| Certificate | CE,FCC,ErP For Barebone CE,FCC,TUV,UL,CCC,CB,ErP For Power Adapter | |
Barebone Fanless, INTEL BAY Braswell N3150, 1xCom, 2xIntel i211 Lan,
4xUSB3.0, 1xUSB3.0, 2xHMDI, 1xDP, m-Sata,
1*mPCIe Half Size, 1xDDR3L Max 8GB, Audio,
Dim : 116x110x49 mm, 12V, Wall mount, DIN, VESA mount
4xUSB3.0, 1xUSB3.0, 2xHMDI, 1xDP, m-Sata,
1*mPCIe Half Size, 1xDDR3L Max 8GB, Audio,
Dim : 116x110x49 mm, 12V, Wall mount, DIN, VESA mount
